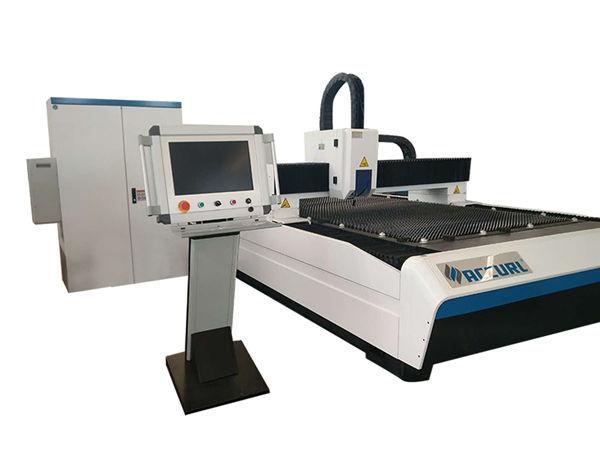

full enclosed industrial laser cutting machine 10m / min cutting speed

Produk besonderhede

Sertifisering: ISO9001: 2008

Betaal- en afleweringsvoorwaardes:

Minimum bestelhoeveelheid: 1

Prys: onderhandeling

Verpakking besonderhede: hout geval

Afleweringstyd: 7-15 dae

Voorsieningsvermoë: 1 eenhede / maand

Gedetailleerde produkbeskrywing

Produk Naam:	Metal Sheet Fiber Laser Cutting Machine	Laserkrag:	1000 w 1500w
Lasergolflengte:	1080nm	Werksarea:	3000 * 1500mm
Dikte sny:	0-16MM (hang af van Laserkrag)	Kragtoevoer:	380V
waarborg:	1 jaar

Produkbeskrywing

1. Geïntegreerde masjienontwerp: links en regs versamellade op die linker- en regterkant van die masjien, wat baie ruimte bespaar.
2. Stabiliteit en betroubaarheid van die ligpaadstelsel en die beheerstelsel.
3. Vesellaser het 'n hoë en stabiele funksie en lewensduur wat meer as 100 000 uur is.
4. Hoër snygehalte en doeltreffendheid, met die snelsnelheid tot 25 m / min met 'n perfekte snykant.
5. Reduksier, rat en rek met hoë werkverrigting; Japannese gids en kogelskroef.

Metal Sheet Fiber Laser Cutting Machine Advantages

1. low usage cost ,only 0.5-1.5km/h power consumption ,can use air to cut thin metal board.
2. High cutting speed , high effeciency,when cutting thin metal board. The speed can arrive 10m/min.
3. High quality of facula,samll deformation ,smooth and beautiful cutting surface.
4. Using import servomotor and Taiwan ball screw and guide rail ,high cutting precision.
5. Using special software to design all kinds of words or figures,then cutting immediately,flexible working and simple operating.
6. High stability,inport the best laser optical maser,steady performance ,that is the most important parts of Fiber cutter.The lifetime of Laser optical maser is 100,000 hours and free maintenance.
7. Low maintenance cost,no need working with air for the laser optical maser,fiber transmission ,no need reflector mirror , can save plenty of maintenance cost.
8. Simple and convenient operating,fiber transmission,no need adjust the light path.

Metal Sheet Fiber Laser Cutting Machine Advantages

Tegniese spesifikasies

^{Lasergolflengte}	^1080nm
^{Sny dikte}	^0.2-16mm
^{Laser uitset krag}	^1000W
^{Maksimum verwerkingsreeks}	^{3000 * 1500mm}
^{Masjienaandrywingmodus}	^{ingevoerde rekstelsel en pinon-aandrywing}
^{Y X. asposisie akkuraatheid}	^{± 0.01mm}
^{XY-as herhaal posisionering akkuraatheid}	^{± 0.01mm}
^{Kragtoevoer af}	^{380V / 50Hz}
^{Maksimum snysnelheid}	^{45m / min}
^{Minimum snylynwydte}	^0.02mm
^Afkoelmodus	^{3P Waterverkoeling}

bykomstighede

Worktable part: the machine adopts double platforms exchange automatically, saving time of loading and unloading materials. High cutting efficiency. Saving time and cost.
The table can carry up to 500KG. The worktable is surrounded by wanxiang ball bearings.
the side of the workbench is installed with the clamping device, which can firmly set the plate on the worktable, so that the plate will not move when the laser is cut.
oordrag
Y axis adopt double drives.
Taiwan Hiwin guide rails and Germany rack and gear
high speed with stability when working
Motors and drives
The X, Y and Z axis are imported servo motors in Japan Yaskawa with high accuracy, high speed, high torque, large inertia and stable performance.
The high speed and speed of the machine are guaranteed
Drives 3kw. high cutting power and precision.
Laser Generator and Laser cutting head
All of our fiber laser cutter are installed with brand name laser generator------Maxphotonics.
Warranty 2 years. low-processing cost and environment-friendly.
Swiss Raytools laser cutting head or Chinese brand name WSX.
Both are high quality and good parameter stability.

Toepassingsbedryf

Toegepas op plaatmetaalverwerking, lugvaart, ruimtevaart, elektronika, elektriese toestelle, metro-bykomstighede, motor, voedselmasjinerie, tekstielmasjinerie, ingenieursmasjinerie, presisieonderdele, skepe, metallurgiese toerusting, hysbakke, huishoudelike toestelle, geskenke, gereedskap, versiering, advertensies , metaalverwerking, verwerking en ander vervaardigings- en verwerkingsbedrywe vir kombuisware.
