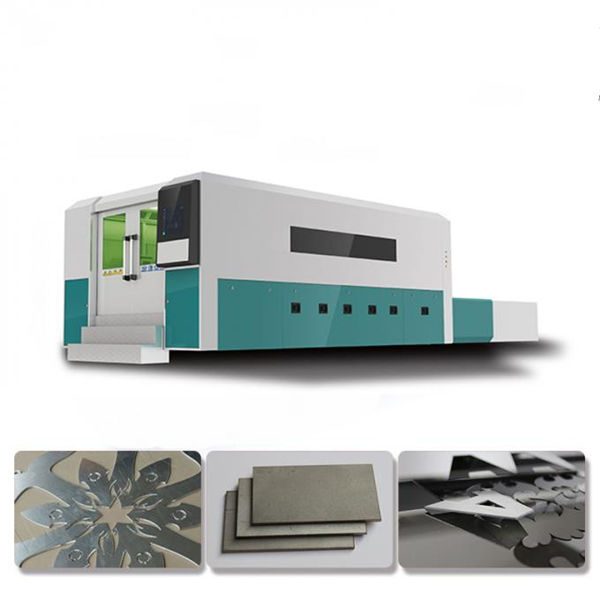

25m / min sheet metal laser cutting machine space saving with light path system

Produk besonderhede

Sertifisering: ISO9001: 2008

Betaal- en afleweringsvoorwaardes:

Minimum bestelhoeveelheid: 1

Prys: onderhandeling

Verpakking besonderhede: hout geval

Afleweringstyd: 7-15 dae

Voorsieningsvermoë: 1 eenhede / maand

Gedetailleerde produkbeskrywing

Produk Naam:	Metaalvel laser snyer	Laserkrag:	1000 w 1500w
Lasergolflengte:	1080nm	Werksarea:	3000 * 1500mm
Dikte sny:	0-16MM (hang af van Laserkrag)	Kragtoevoer:	380V
waarborg:	1 jaar

Produk Beskrywing

1. Integrated machine design: left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stabiliteit en betroubaarheid van die ligpaadstelsel en die beheerstelsel.
3. Vesellaser het 'n hoë en stabiele funksie en lewensduur wat meer as 100 000 uur is.
4. Hoër snygehalte en doeltreffendheid, met die snelsnelheid tot 25 m / min met 'n perfekte snykant.
5. Reduksier, rat en rek met hoë werkverrigting; Japannese gids en kogelskroef.

Belangrikste kenmerke

1. Easy operations: fiber line transmission, no adjustment of optical path;
2. Fast cutting speed: Cutting speed is more than 20m/min.
3. Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has 3 times photoelectric conversion efficiency
5. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
6. Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
7. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

Tegniese spesifikasies

^{Lasergolflengte}	^1080nm
^{Sny dikte}	^0.2-16mm
^{Laser uitset krag}	^1000W
^{Maksimum verwerkingsreeks}	^{3000 * 1500mm}
^{Masjienaandrywingmodus}	^{ingevoerde rekstelsel en pinon-aandrywing}
^{Y X. asposisie akkuraatheid}	^{± 0.01mm}
^{XY-as herhaal posisionering akkuraatheid}	^{± 0.01mm}
^{Kragtoevoer af}	^{380V / 50Hz}
^{Maksimum snysnelheid}	^{45m / min}
^{Minimum snylynwydte}	^0.02mm
^Afkoelmodus	^{3P Waterverkoeling}

Sheet Metal Laser Cutting Machine Application

Application materials: mainly non-contact cutting metal materials, carbon steel, stainless steel, aluminum, titanium, galvanized plate, galvanized plate, silicon steel, pickling board and other fragile alloys.
Applications industry: household appliances, sheet metal processing, precision metal parts (aerospace), electronic appliances, subway parts, auto machinery, metallurgical equipment, gifts, tools, processing, advertising decoration and other industries.
